The TQ steel bar straightens the cutting off machine

Quantity:
  The steel bar straightens the cutting off machine TQ series

 △ general numerical control system
 △ tows and straightens the part to use the frequency conversion velocity modulation completely
 △ the cut-off length through hits the switch fixed-length cut-off
 △ has two times keeps off the material function
 △ vibration alignment function


 Model  TQ1.6-6  TQ2-8  TQ3-12
 Steel wire diameter  φ1.6-φ6 [mm]  φ2-φ8 [mm]  φ3-φ12 [mm]
 Cut-off length  50-6000 [mm](hits switch, servo cut-off)  50-6000 [mm](hits switch, servo cut-off)  50-12000 [mm](hits switch, servo cut-off)
 Length precision  ±1 [mm]  ±1 [mm]  ±1 [mm]
 Straightens the speed of spindle  500-10000 [Extension/Minute](ACFrequency conversion velocity modulation)  500-10000 [Extension/Minute](ACFrequency conversion velocity modulation)  500-10000 [Extension/Minute](ACFrequency conversion velocity modulation)
 Pulling speed  0-180 [Rice/Minute](ACFrequency conversion velocity modulation)  0-180 [Rice/Minute](ACFrequency conversion velocity modulation)  0-180 [Rice/Minute](ACFrequency conversion velocity modulation)
 Cut-off speed  600 [Time/Minute]  600 [Time/Minute]  600 [Time/Minute]
 Power source requirement  380V 50Hz 13KVA    380V 50Hz 20KVA    380V 50Hz 35KVA
 Total output  13 [kw/h]  20 [kw/h]  35 [kw/h]
 Power consumption  3-7 [kw/h]  8-20 [kw/h]  10-35 [kw/h]
 Steel wire raw material  Iron wire, medium carbon steel silk, high-carbon steel silk, alloy-steel wire, stainless steel wire, galvanization steel wire and so on
 Steel wire tensile strength  350-1200 [N/mm⊃2;]
 Steel wire surface condition  Refacing, galvanization, belt rib wire rod and so on

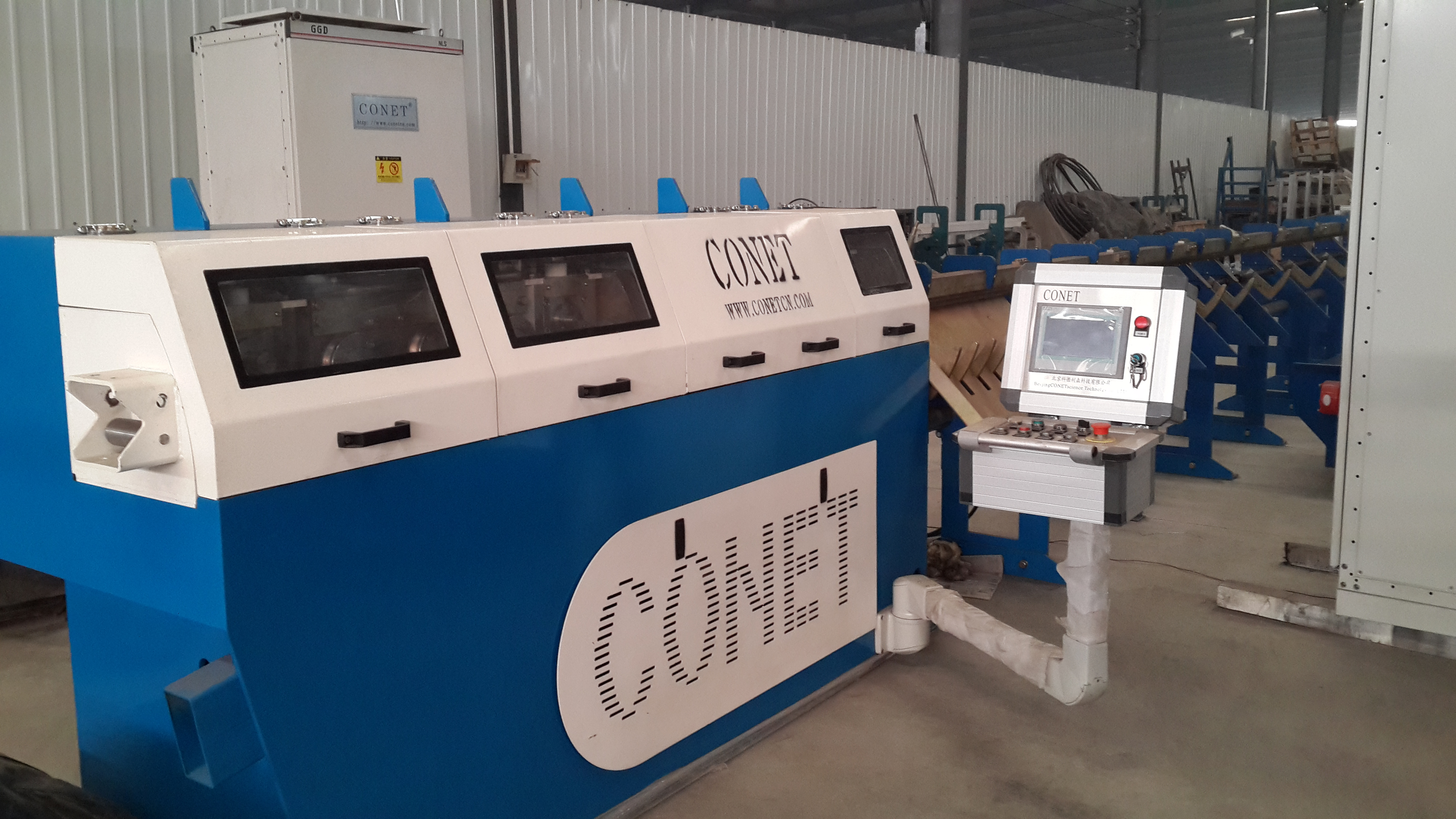

The CONET steel bar straightens the cutting off machine

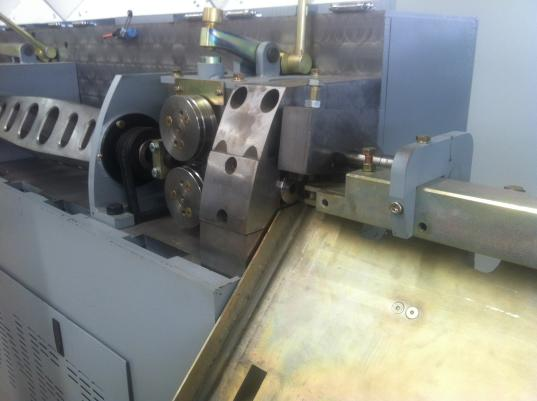

Cut-off system

Cut-off system

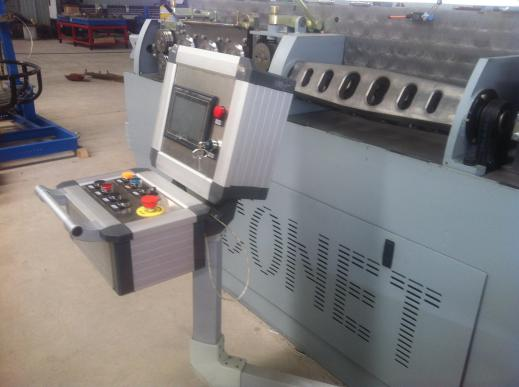

Transportable console

Transportable console
