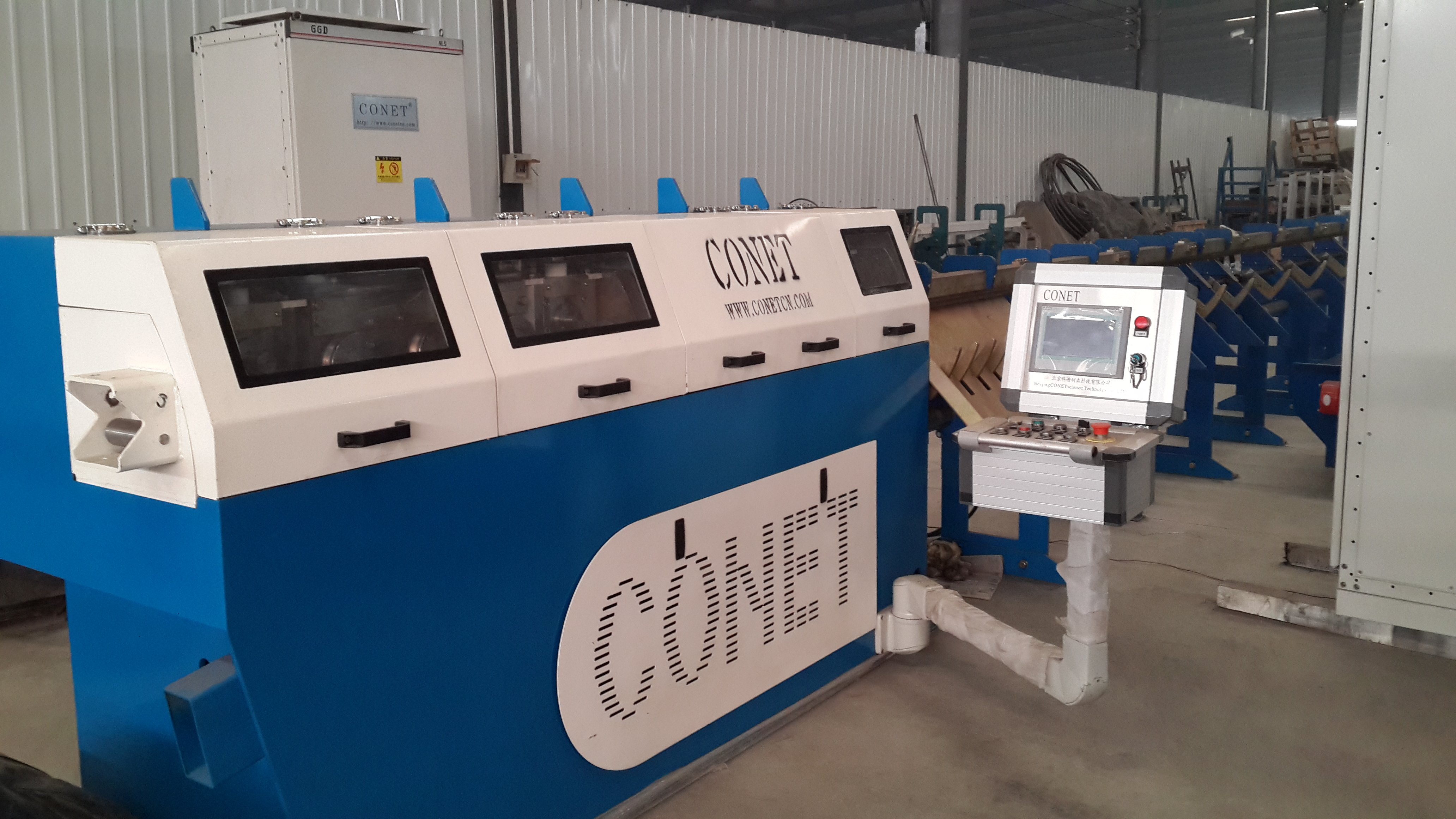

TQ Series
△ Some systems controlled by CNC
△ Traction and straightening speed all adopting frequency control
△ Cutting length controlled by sensor switch
△ With secondary stop gauge system, so no stop machine when packing
△ Finished wire vibration alignment function
| Model | TQ1.6-6 | TQ2-8 | TQ3-12 |
| Wire diameter | Φ1.6-Φ6 [mm] | Φ2-Φ8 [mm] | Φ3-Φ12 [mm] |
| Cutting length | 50-6000 [mm]（Sensor switch, servo cutting） | 50-6000 [mm]（Sensor switch, servo cutting） | 50-12000 [mm]（Sensor switch, servo cutting） |
| Accuracy of length | ±1 [mm] | ±1 [mm] | ±1 [mm] |
| Straitening shaft speed | 500-10000 [rows/min.] (AC frequency control) | 500-10000 [rows/min.] (AC frequency control) | 500-10000 [rows/min.] (AC frequency control) |
| Straitening speed | 0-180 [m/min.] (AC frequency control) | 0-180 [m/min.] (AC frequency control) | 0-180 [m/min.] (AC frequency control) |
| Cutting speed | 600 [times/min.] | 600 [times/min.] | 600 [times/min.] |
| Power supply | 380V 50Hz 13KVA | 380V 50Hz 20KVA | 380V 50Hz 35KVA |
| Total power consumption | 13 [kw/h] | 20 [kw/h] | 35 [kw/h] |
| Electric power consumption | 3-7 [kw/h] | 8-20 [kw/h] | 10-35 [kw/h] |
| Material | Low、middle & high carbon steel wire、Galvanized steel wire、SS wire、Alloy steel wire |
| Steel wire tensile strength | 350-1200 [N/mm⊃2;] |
| Steel wire surface | Plain smooth、Galvanized、ribbed wire etc. |
