Steel frame pressure welding production line

Steel frame pressure welding production line

Product synopsis

The steel frame pressure welding production line is straightens the cold Niu steel automated pressure welding which the cut-off the hoop and straightens in advance to become in advance the steel frame the device. Welds the steel frame widely applies in the marine petroleum oil drilling platform 、 Factory two channels 、 Municipal engineering and sewer cover and so on.

Technical parameter




Model		GYH1000-1000	GYH1200-1200
The steel frame is wide		200-1000 [mm]	200-1200 [mm]
The steel frame is long		1500-6000 [mm]	1500-6000 [mm]
Transverse steel diameter		φ4-φ8 [mm]	φ4-φ8 [mm]
Transverse steel spacing		50/60/80/100 [mm]	50/60/80/100 [mm]
Longitudinal hoop altitude		20-100 [mm]	20-100 [mm]
Longitudinal hoop thickness		2-8 [mm]	2-8 [mm]
Longitudinal hoop spacing		12.7/30/40/50 [mm]	12.7/30/40/50 [mm]
Welding capacity		1000 [KVA] (The rated load continues to lead50%When)	1500 [KVA] (The rated load continues to lead50%When)
Power source requirement	Not gathers energy	380V 50Hz 800KVA	380V 50Hz 1500KVA
	Has gathers energy	380V 50Hz 63KVA	380V 50Hz 80KVA
Power consumption		20-120 [KVA]	20-120 [KVA]
Is mad the source requirement		0.8MPa 1m3 /Minute	0.8MPa 1m3 /Minute
Biggest welding ability		PHI8mmLeng Niu Gang+33Root5mmThick hoop	PHI8mmLeng Niu Gang+33Root5mmThick hoop
Production efficiency		20-40 [Platoon/Minute]	20-40 [Platoon/Minute]
Hoop material		Through vertical cuts formed the low-carbon steel	Through vertical cuts formed the low-carbon steel
Leng Niu steel material		Low-carbon steel bar	Low-carbon steel bar

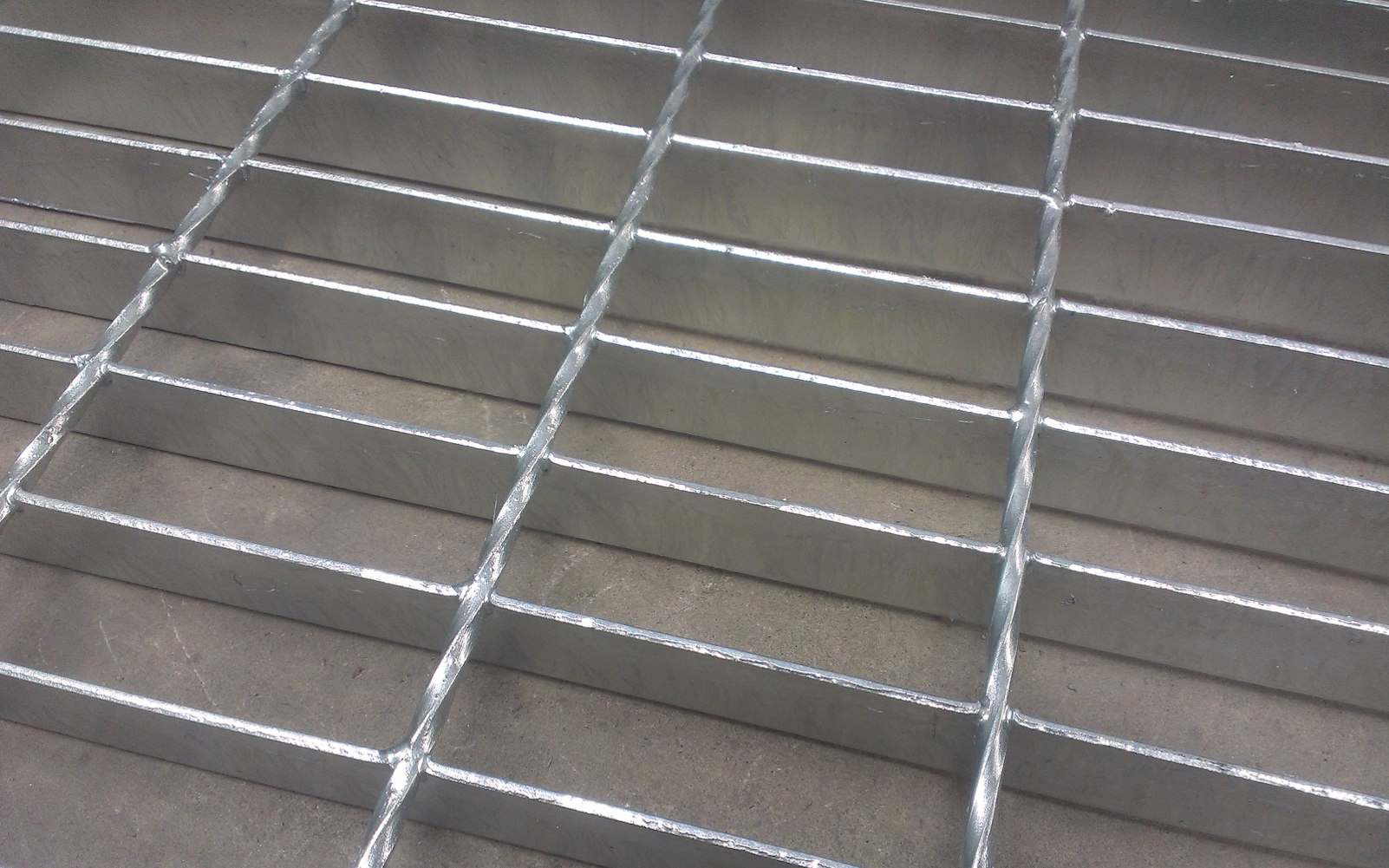

Steel frame end product chart



Steel frame press welder
