Reinforcing cage seam welder
Reinforcing cage seam welder
Share to:

Reinforcing cage seam welder

Quantity:
Inquire Add to Basket

Reinforcing cage seam welder

Product synopsis

The reinforcing cage seam welder may the automated disposable formation length12-27 Rice reinforcing cage. Widely applies in the bridge construction, domains and so on high-speed railroad construction.

Product superiority

△ May provide the square shape, the circular reinforcing cage
△ may select the screw winding welding or the automated curving automatic positioning welding
△ May select the resistance welding or the arc welding

Technical parameter


 Model  GJL1250  GJL1500  GJL2000  GJL2500
 Reinforcing cage diameter  φ200-φ1250 [mm]  φ300-φ1500 [mm]  φ400-φ2000 [mm]  φ400-φ2500 [mm]
 Reinforcing cage length  12m、14m、18m、22m、27m
 Reinforcing cage maximum weight  3000 [kgs]  4500 [kgs]  6000 [kgs]  8000 [kgs]
 Main reinforcement diameter  φ12-φ40 [mm]
 Disk muscle diameter  φ5-φ16 [mm]
 Circles the muscle spacing scope  10-450 [mm]May adjust willfully

Product picture:

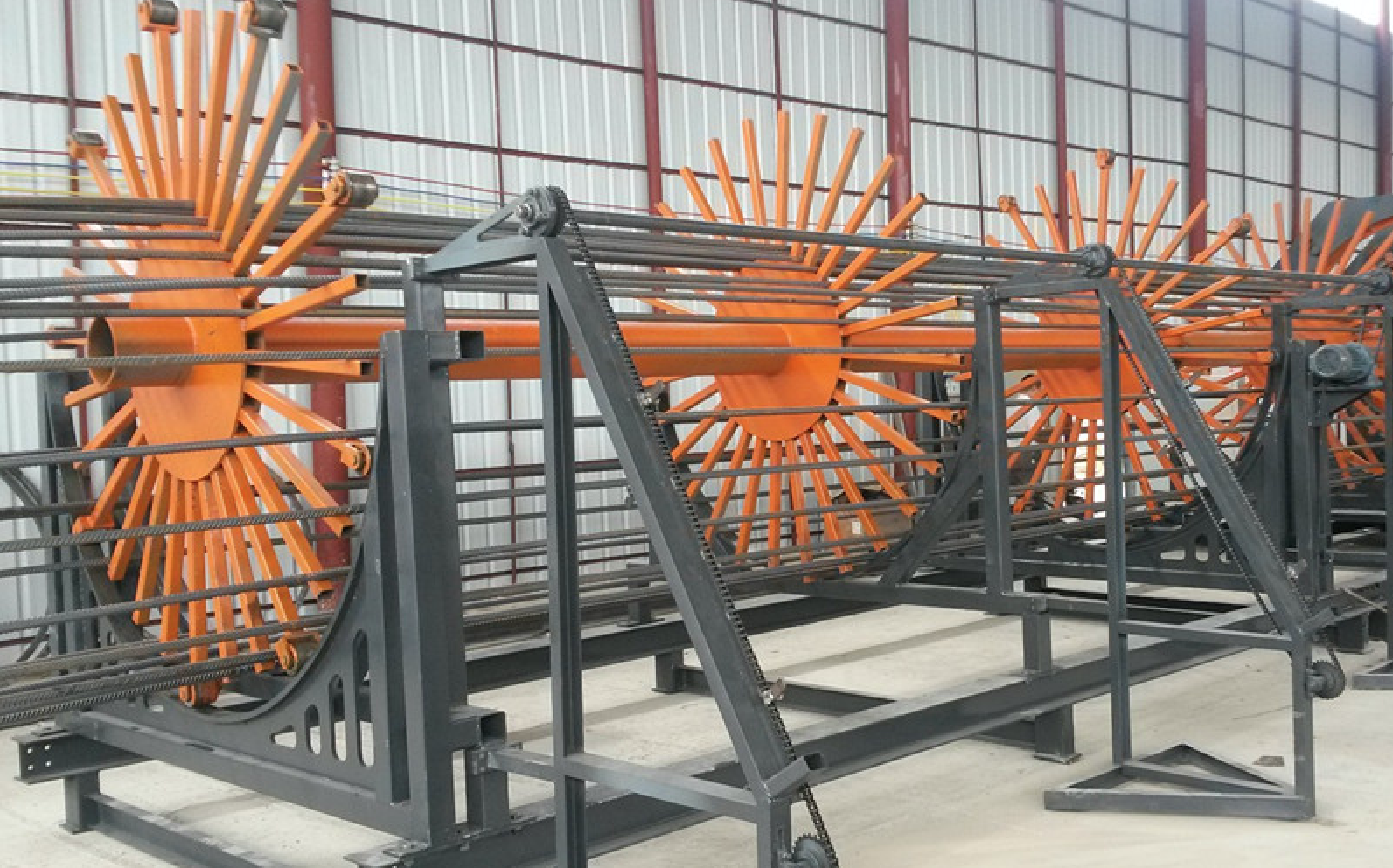

Reinforcing cage welding machine

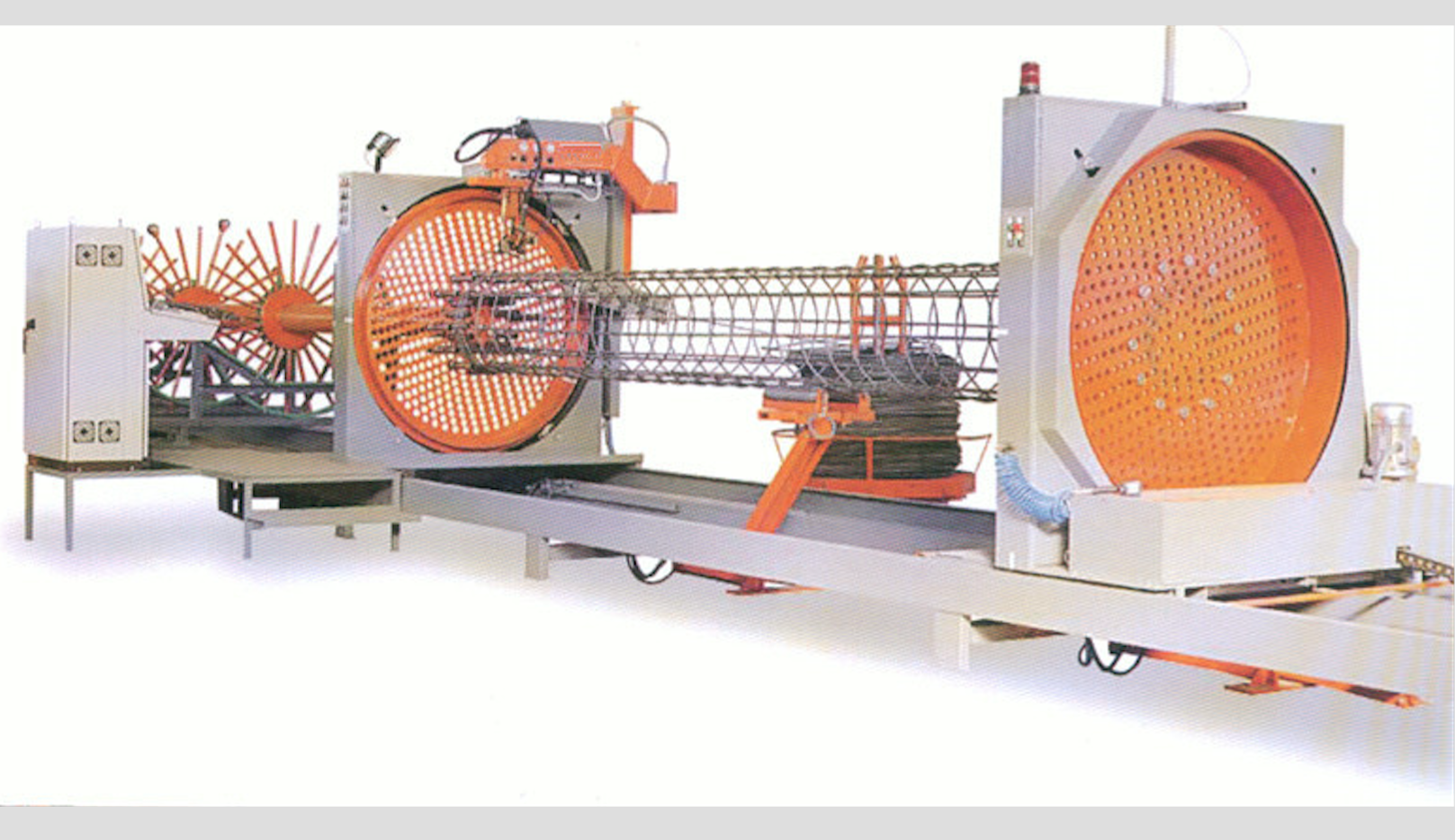

Reinforcing cage welding machine 2
