HLV series V strengthens the railing network welding production line

  HLV series V strengthens the railing network welding production line



  Product synopsis



 The HLV series welding machine of mesh is one section is specially V the completely automatic device which strengthens the railing network to design. Use completely after the silk and the latitude silk straighten the cut-off in advance the steel wire high-quality goods. Places automatedly after the silk, most length 4 meters; The latitude silk falls the material automatedly; The welding uses the air operated compaction; The transverse steel wire spacing numerical control check, may on net present the different mesh spacing in identical; After the welding finished, the computer automated booklet strengthens V shape trough; After the knee bend, automated stack.



  Technical parameter



Model	HLV2000	HLV2500	HLV3000
Steel wire diameter	φ3-φ6 [mm]	φ3-φ6 [mm]	φ3-φ6 [mm]
The most clathria is wide	2000 [mm]	2500 [mm]	3000 [mm]
The network is long	50-4000 [mm]Numerical control setup	50-4000 [mm]Numerical control setup	50-4000 [mm]Numerical control setup
After silk spacing	50-200 [mm]Stepless adjustable	50-200 [mm]Stepless adjustable	50-200 [mm]Stepless adjustable
Latitude silk spacing	50-200 [mm]Stepless adjustable	50-200 [mm]Stepless adjustable	50-200 [mm]Stepless adjustable
Welding speed	0-80[Platoon/Minute](ACFrequency conversion velocity modulation)	0-80[Platoon/Minute](ACFrequency conversion velocity modulation)	0-80[Platoon/Minute](ACFrequency conversion velocity modulation)
Power source requirement	380V 50Hz 1000KVA	380V 50Hz 1300KVA	380V 50Hz 1500KVA
Aggregate capacity (power)	1000 [KVA]	1300 [KVA]	1500 [KVA]
Power consumption	2-30 [kw/h]	2-35 [kw/h]	2-40 [kw/h]
Compressed air requirement	0.6MPa 1m3/min.	0.6MPa 3m3/min.	0.6MPa 4m3/min.
Cooling water requirement	0.3MPa 1m3/min.	0.3MPa 1m3/min.	0.3MPa 1m3/min.
Wire material	Iron wire	Iron wire	Iron wire
Steel wire tensile strength	350-550 [N/mm⊃2;]	350-550 [N/mm⊃2;]	350-550 [N/mm⊃2;]
Steel wire surface condition	Refacing and galvanization or belt rib wire rod	Refacing and galvanization or belt rib wire rod	Refacing and galvanization or belt rib wire rod

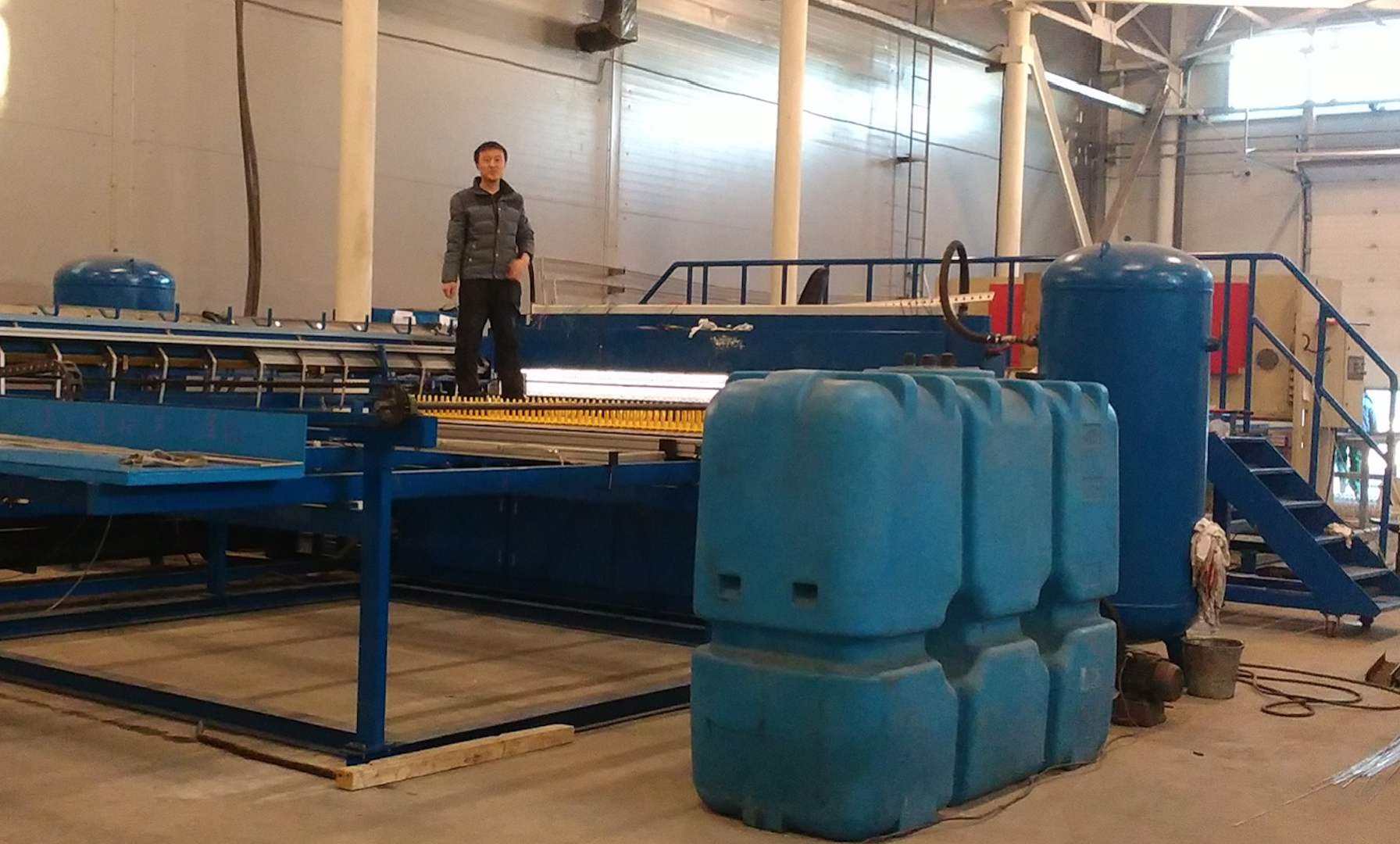

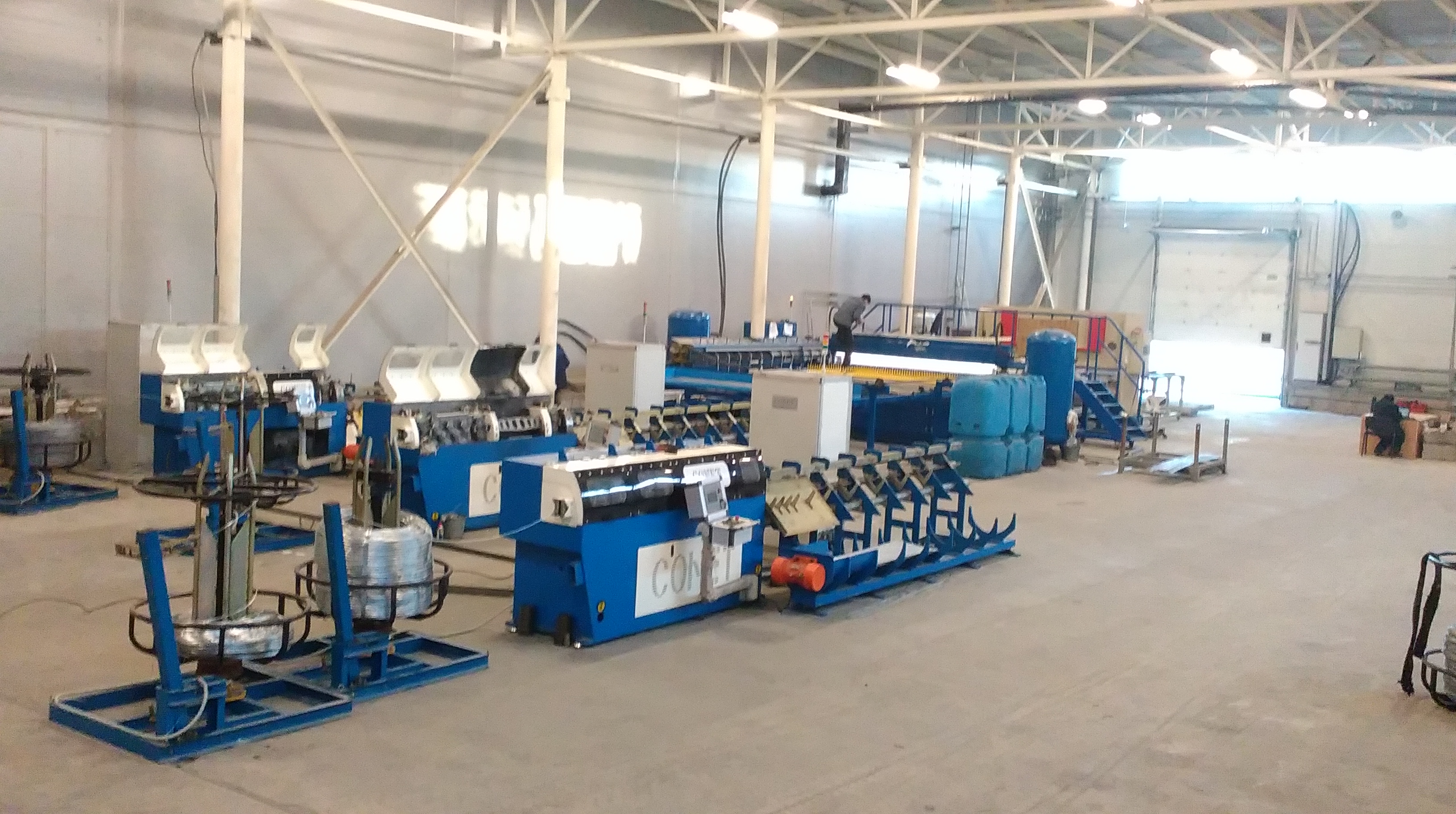

 V strengthens the railing network welding production line

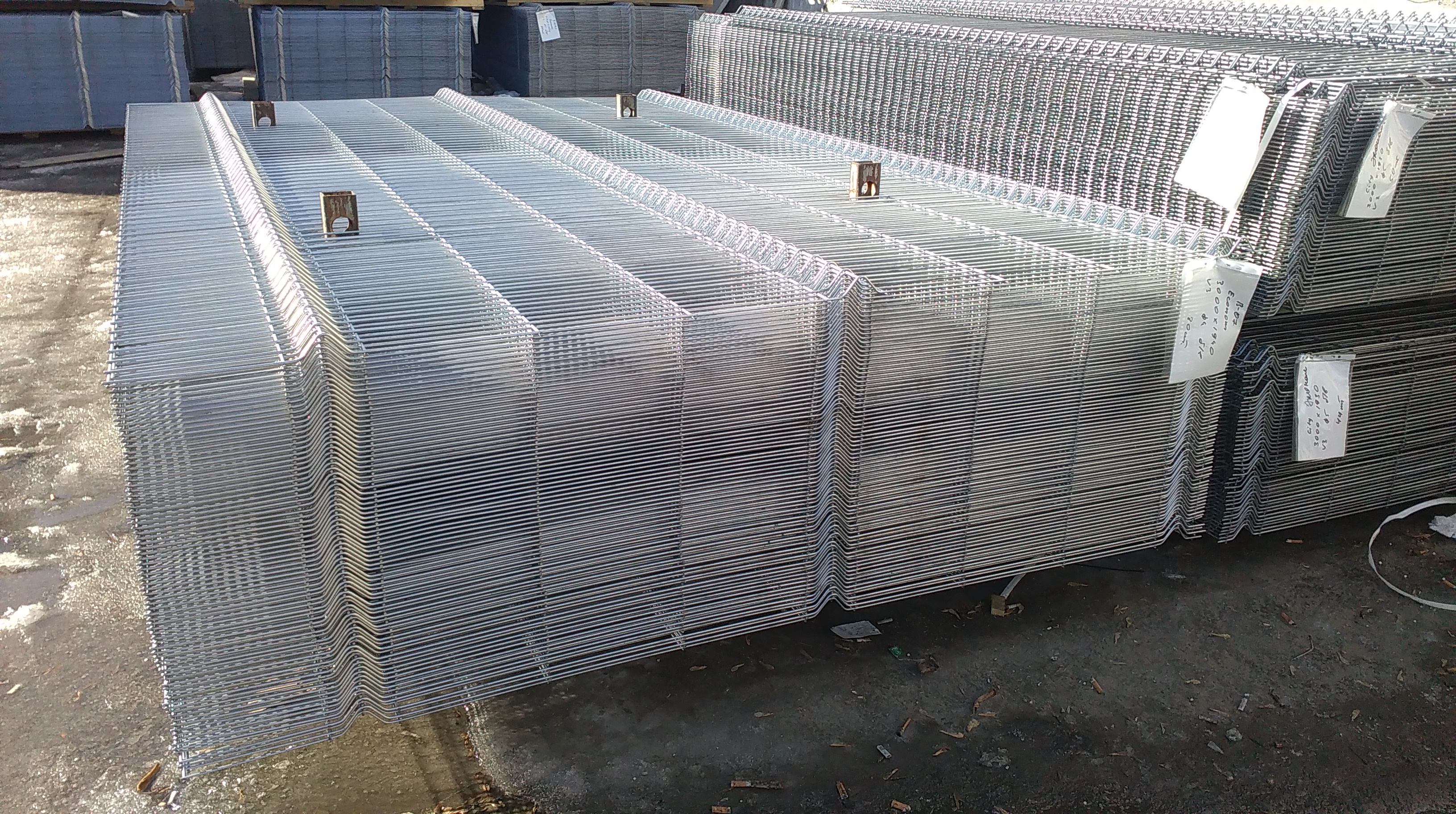

 V network end product
