Product Introduction

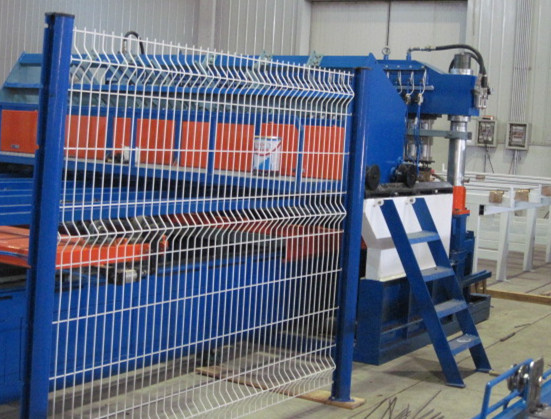

HLV Series Wire Mesh Welding Line is specially designed for producing V groove strengthen fence mesh. The line wire and cross wire both in precut wire feeding automatically. Adopting pneumatic welding clamping, with cross wire spacing controlled by CNC, can produce different sizes of mesh with different mesh opening. After welding, auto mesh bending with V groove and stacking & transmission automatically.
Technical Parameter
| Model | HLV2000 | HLV2500 | HLV3000 |
| Wire diameter | Φ3-Φ6 [mm] | Φ3-Φ6 [mm] | Φ3-Φ6 [mm] |
| Max. mesh width | 2000 [mm] | 2500 [mm] | 3000 [mm] |
| Mesh. Length | 50-4000 [mm] | 50-4000 [mm] | 50-4000 [mm] |
| Line wire spacing | 50-200 [mm] | 50-200 [mm] | 50-200 [mm] |
| Cross wire spacing | 50-200 [mm] | 50-200 [mm] | 50-200 [mm] |
| Welding speed | 0-80 [strokes/min.] | 0-80 [strokes/min.] | 0-80 [strokes/min.] |
| Power supply | 380V 50Hz 1000KVA | 380V 50Hz 1300KVA | 380V 50Hz 1500KVA |
| Total power | 1000 [KVA] | 1300 [KVA] | 1500 [KVA] |
| Power consumption | 2-30 [kw/h] | 2-35 [kw/h] | 2-40 [kw/h] |
| Air need | 0.6MPa 1m3/min. | 0.6MPa 3m3/min. | 0.6MPa 4m3/min. |
| Cooling water need | 0.3MPa 1m3/min. | 0.3MPa 1m3/min. | 0.3MPa 1m3/min. |
| Material | Low carbon steel wire |
| Steel wire tension | 350-550 [N/mm⊃2;] |
| Steel wire surface | Smooth plain wire or glvanized wire or steel ribbed bars |
