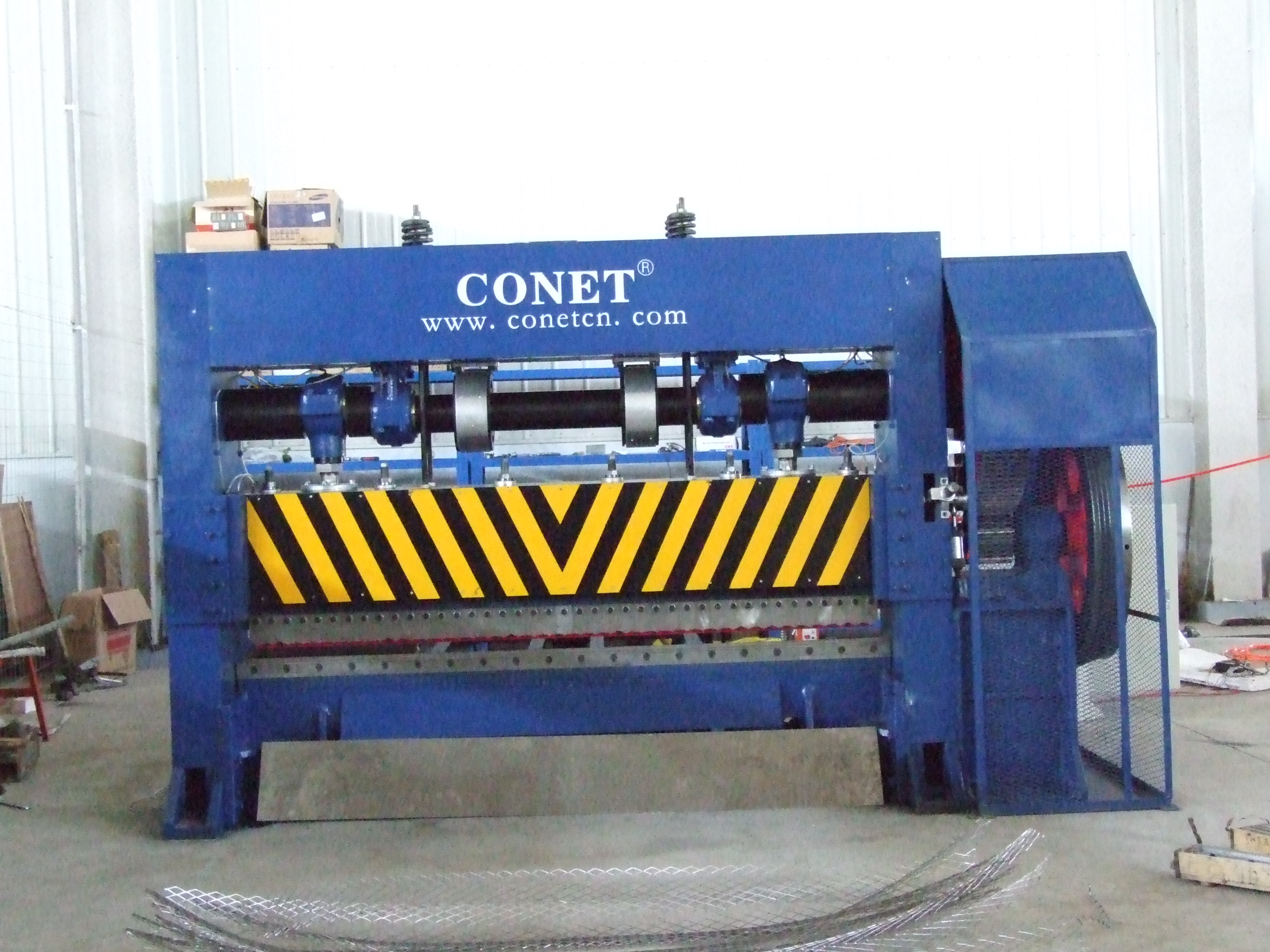

Expanded Metal Mesh Machine
Product Introduction
Expanded Metal Mesh Machine is specially used to stamp low carbon steel sheet, stainless steel sheet, aluminum sheet, copper sheet, nickel sheet, aluminum-magnesium alloy sheet etc. metal sheet into metal mesh with different mesh opening shapes.
Technical Parameter | Model | AH25-6.3 | AH25-16 | AH25-25 | AH25-63A | AH25-63B | AH25-160A | AH25-160B |
| Metal sheet thickness | ≤1.0 [mm] | ≤1.0 [mm] | ≤1.5 [mm] | ≤2.5 [mm] | ≤3 [mm] | ≤6 [mm] | ≤6 [mm] |
| Max. stamping and cutting width | 500 [mm] | 1000 [mm] | 1250 [mm] | 2000 [mm] | 2000 [mm] | 2500 [mm] | 2500 [mm] |
| Slider reciprocatig times | 180 [times/min.] | 150 [times/min.] | 150 [times/min.] | 70 [times/min.] | 45 [times/min.] | 70 [times/min.] | 20 [times/min.] |
| Feeding distance | 0-1.15 [mm] | 0-1.2 [mm] | 0-1.2 [mm] | 0-4 [mm] | 0-4 [mm] | 0-7 [mm] | 0-7 [mm] |
| Mesh opening longer distance | ≤20 [mm] | ≤25 [mm] | ≤30 [mm] | ≤100 [mm] | ≤200 [mm] | ≤250 [mm] | ≤250 [mm] |
| Total power | 22 [kw] | 3 [kw] | 4 [kw] | 11 [kw] | 11 [kw] | 22 [kw] | 22 [kw] |
| Model | LC25-6.3 | LC25—16 | LC25-25 | LC25-63A | LC25—63B | LC25-160A | LC25—160B |
| Metal sheet thickness | ≤1.0 [mm] | ≤1.0 [mm] | ≤1.5 [mm] | ≤2.5 [mm] | ≤3 [mm] | ≤6 [mm] | ≤6 [mm] |
| Max. stamping and cutting width | 500 [mm] | 1000 [mm] | 1250 [mm] | 2000 [mm] | 2000 [mm] | 2500 [mm] | 2500 [mm] |
| Slider reciprocatig times | 180 [times/min.] | 150 [times/min.] | 150 [times/min.] | 70 [times/min.] | 45 [times/min.] | 70 [times/min.] | 20 [times/min.] |
| Feeding distance | PLC control with adjustable feeding length and auto cutting |
| Mesh opening longer distance | ≤20 [mm] | ≤25 [mm] | ≤30 [mm] | ≤100 [mm] | ≤200 [mm] | ≤250 [mm] | ≤250 [mm] |
| Total power | 22 [kw] | 3 [kw] | 4 [kw] | 11 [kw] | 11 [kw] | 22 [kw] | 22 [kw] |
