EPS Production Line
Product Introduction

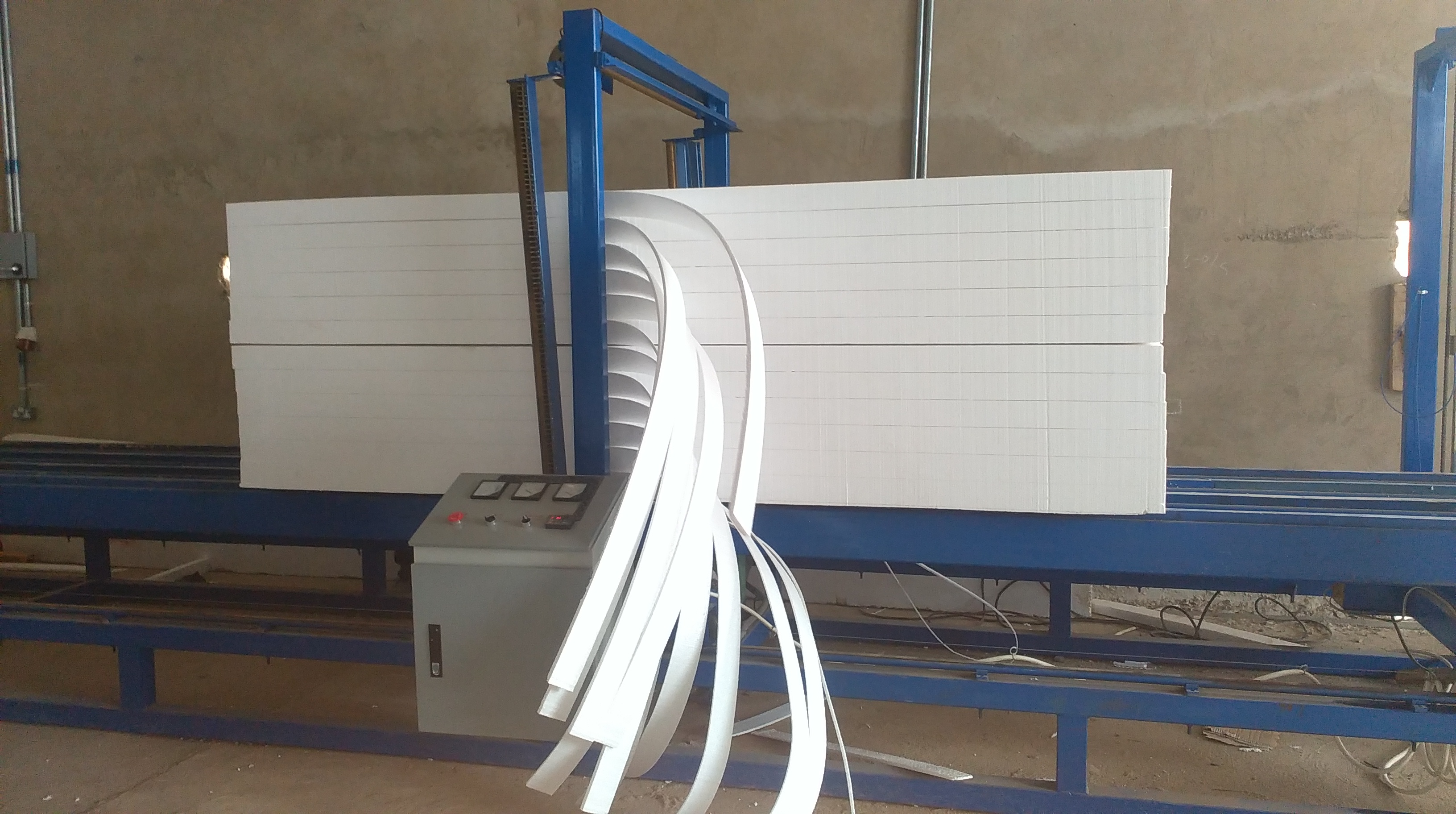

EPS Production Line includes EPS Pre-expander, EPS Forming Machine and EPS Cutting Machine etc. EPS board as core plate of 3D wall panel, widely used in general industrial buildings, residential buildings and public construction projects etc.
Technical Parameter | Model | PS130 |
| Barrel volume | Diameter | Φ1300 [mm] |
| Volume | 2.4 [m⊃3;] |
| Effective volume | 1.6 [m⊃3;] |
| Steam | Inlet diameter | DN65 |
| Consumption | 10-12 [kgs/cycle] |
| Pressure | 0.6-0.8 [Mpa] |
| Compressed air | Inlet diameter | DN40 |
| Consumption | 0.7-0.9 [m⊃3;] |
| Pressure | 0.6-0.8 [Mpa] |
| Drain contamination | Sewage outlet diameter | DN100 |
| Condensed water mouth diameter | DN100 |
| Production capacity | Density：12 [kg/m⊃3;] | 530 [kg/h] |
| Density：15 [kg/m⊃3;] | 670 [kg/h] |
| Density：20 [kg/m⊃3;] | 920 [kg/h] |
| Density：30 [kg/m⊃3;] | 1220 [kg/h] |
| Feeding pipe diameter | Φ250 [mm] |
| Total power | 22 [kw] |
| Power supply | 380V 50Hz 3+N 22kw |
| Power consumption | 15-20 [kw/h] |
| Foaming density | 12-30 [kg/m⊃3;] |
