Product Introduction

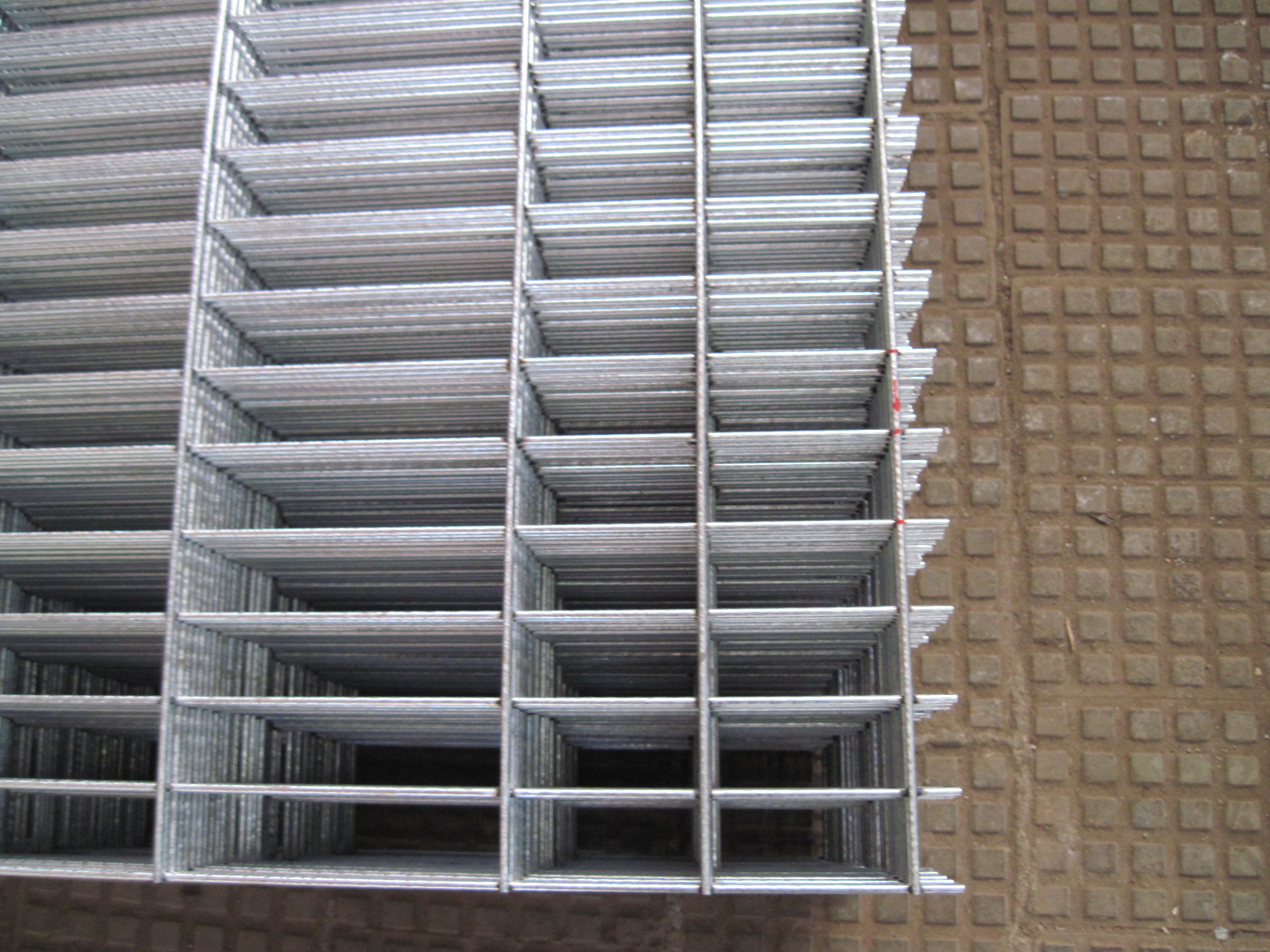

DNW Series Fine Wire Mesh Welding Line is a type of economical line, adopting mechanical clamping, pressure adjustment upon the springs of the upper electrodes, cross wire spacing changing upon mechanical adjustment, suitable for mass production of uniform cross wire mesh.
Technical Parameter
| Model | DNW1200 | DNW2000 | DNW2500 |
| Wire diameter | Φ1.8-Φ3 [mm] | Φ1.8-Φ5 [mm] | Φ1.8-Φ5 [mm] |
| Max. mesh width | 1200 [mm] | 2000 [mm] | 2500 [mm] |
| Line wire spacing | 50-200 [mm] | 50-200 [mm] | 50-200 [mm] |
| Cross wire spacing | 50-200 [mm] | 50-200 [mm] | 50-200 [mm] |
| Welding speed | 0-60 [strokes/min.] | 0-60 [strokes/min.] | 0-60 [strokes/min.] |
| Power supply | 380V 50Hz 36KVA | 380V 50Hz 126KVA | 380V 50Hz 189KVA |
| Total power | 72 [KVA] | 441 [KVA] | 567 [KVA] |
| Power consumption | 2-4 [kw/h] | 3-10 [kw/h] | 3-12 [kw/h] |
| Material | Low carbon steel wire |
| Steel wire tension | 350-550 [N/mm²] |
| Steel wire surface | Smooth plain wire or galvanized wire or steel ribbed bars |
