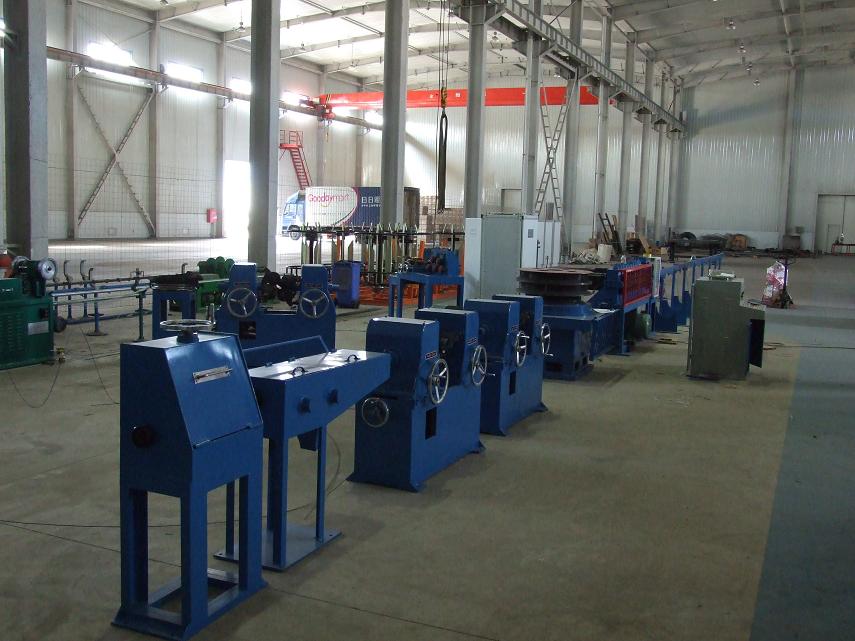

Cold rolling belt rib steel bar production line

  Cold rolling belt rib steel bar production line


 The cold rolling belt rib steel bar production line is the cold rolling steel bar or the cold rolling belt rib steel bar completely automatic moves hot rolling light round cold rolling Cheng Guangyuan the production line. The cold rolling belt rib ratio of reinforcement hot rolling belt rib steel bar compares has the intensity to be high, surface clean and so on merits.


 △ may select the passive cold rolling or the driving cold rolling

 △ may select two ribs, three rows ribs, four rows ribs

 △ may select the end product to receive the volume or the online fixed-length cut-off

 △ may also choose and match the end product tempering heat treatment system, thus achieves a higher ductility

 △ the maximum speed may amount to for 12 meters/seconds




Model	ZJ5-12-6	ZJ5-12-12	ZJ6-16-2.5
Inputs the steel bar diameter	φ6.5-φ14 [mm]	φ6.5-φ14 [mm]	φ6.5-φ16 [mm]
Outputs the steel bar diameter	φ5-φ12 [mm]	φ5-φ12 [mm]	φ6.5-φ16 [mm]
Inputs the steel bar intensity	195-440 [N/mm⊃2;]	195-440 [N/mm⊃2;]	195-440 [N/mm⊃2;]
Outputs the steel bar intensity	440-700 [N/mm⊃2;]	440-700 [N/mm⊃2;]	440-700 [N/mm⊃2;]
Speed	0-6 [m/s]  Frequency changer stepless speed regulation	0-12 [m/s]Frequency changer stepless speed regulation	0-2.5 [m/s]Frequency changer stepless speed regulation
Power source requirement	380V 50Hz 180KVA	380V 50Hz 250KVA	380V 50Hz 180KVA
Inputs the steel bar material	Hot rolling low-carbon steel bar	Hot rolling low-carbon steel bar	Hot rolling low-carbon steel bar

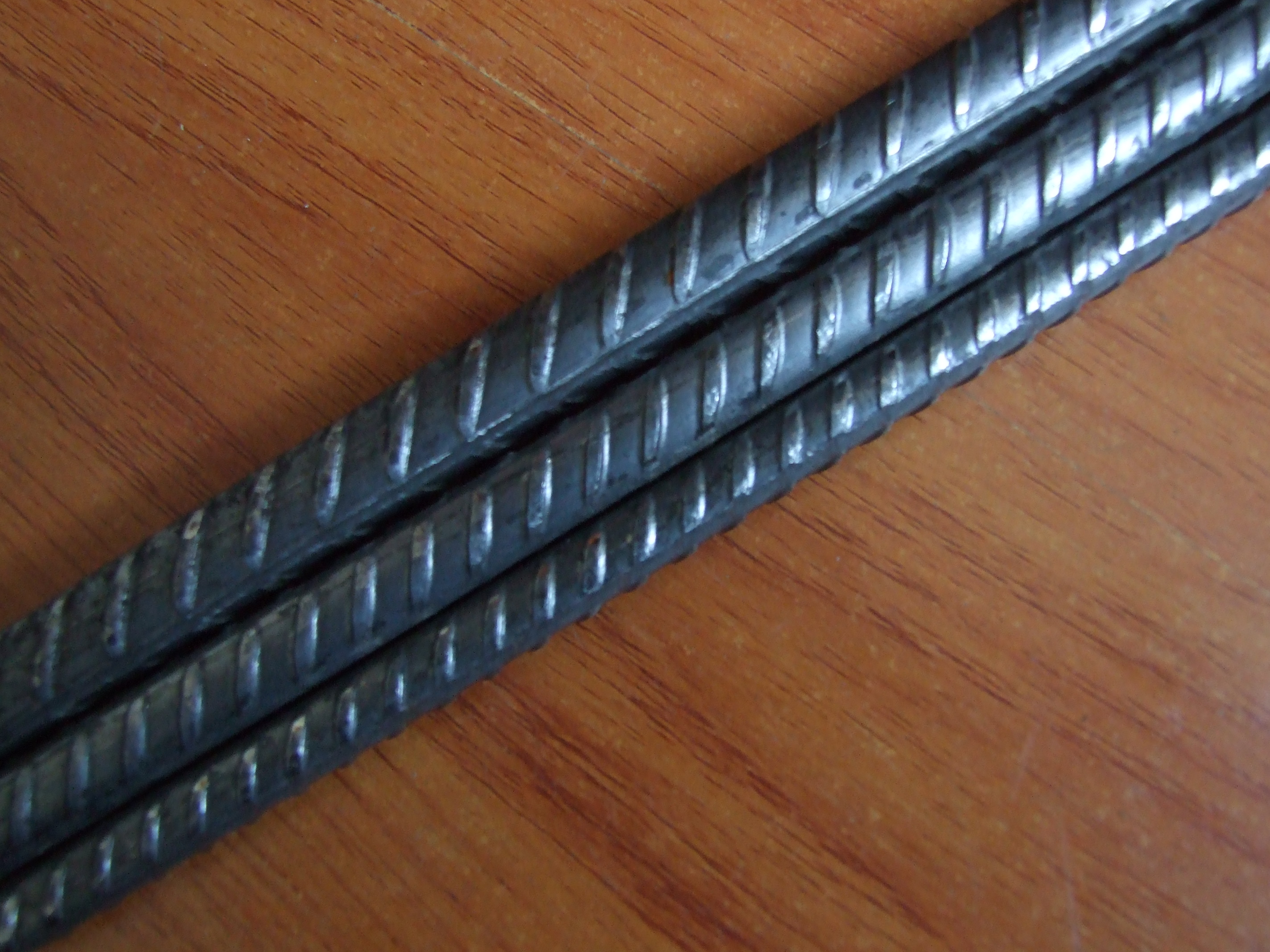

Outputs the steel bar end product	Cold rolling light circle or belt rib steel bar	Cold rolling light circle or belt rib steel bar	Cold rolling light circle or belt rib steel bar
Total output	180 [kw/h]	250 [kw/h]	180 [kw/h]
