3+HLV series double silk guard rail network welding production line
Product synopsis
the 3+HLV series double silk guard rail network welds production line's warp and the latitude parallel uses completely straightens the cut-off the steel wire to supply the material in advance, the warp and the latitude parallel is equipped with separately falls the material system automatedly, may weld the double horizontal line to clamp one to set upright the line alternately the steel wool, may also weld ordinary two steel wire overlapping joining the steel wool.
Technical parameter | Model | 3+HLV-2500 |
| The network is wide | 1000-2500 [mm] |
| The network is long | 1000-3000 [mm] |
| Silk diameter | PHI3-PHI6 [mm] |
| Vertical line spacing | 50-200 [mm] |
| Horizontal line spacing | 10-300 [mm] |
| Maximum welding speed | 50-60 [Platoon/Minute] |
| Electrode quantity | 51 [Wrap] |
| Power source requirement | 380V 50Hz 1300KVA |
| Welding aggregate capacity | 1300KVA (100KVA*13Taiwan) |
| Power consumption | 10-50 [kw] |
| Is mad the source requirement | 0.6-0.8MPa 6m3/min. |
| Cooling water requirement | 0.3 MPa 0.6m3/min. |
| Biggest welding ability | PHI6+PHI6+PHI6 [mm] |
| Wire material | Low-carbon steel |
| Steel wire surface condition | Refacing or galvanization |

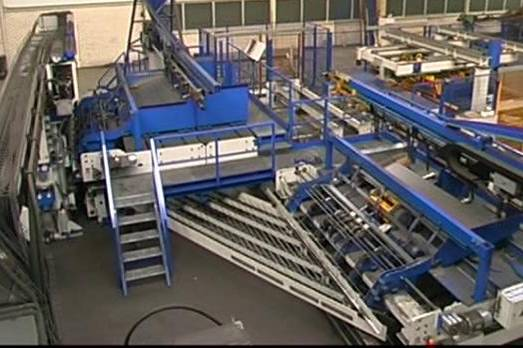

Double silk guard rail network welding apparatus
