Product Introduction

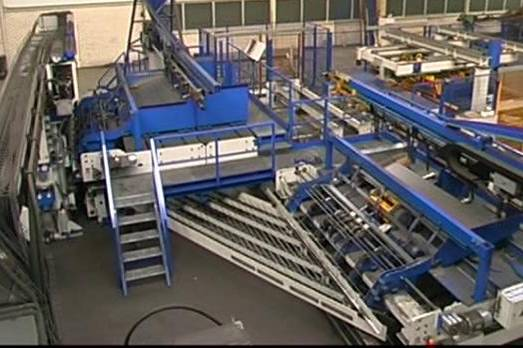

3+HLV Series Wire Mesh Welding Line is used to weld double cross wire and one line wire to be 3D mesh, also can weld ordinary 2D mesh, with line wire and cross wire both in precut wire feeding automatically.
Technical Parameter | Model | 3+HLV-2500 |
| Mesh width | 1000-2500 [mm] |
| Mesh length | 1000-3000 [mm] |
| Wire diameter | Φ3-Φ6 [mm] |
| Line wire spacing | 50-200 [mm] |
| Cross wire spacing | 10-300 [mm] |
| Welding speed | 50-60 [strokes/min.] |
| Power supply | 380V 50Hz 1300KVA |
| Total power | 1300KVA |
| Power consumption | 10-50 [kw] |
| Air need | 0.6-0.8MPa 6m3 /min. |
| Cooling water need | 0.3 MPa 0.6m3 /min. |
| Material | Φ6+Φ6+Φ6 [mm] |
| Steel wire tension | Low carbon steel wire |
| Steel wire surface | Smooth plain wire or galvanized wire |
