TQ Series

Quantity:
TQ Series

△ Some systems controlled by CNC
△ Traction and straightening speed all adopting frequency control
△ Cutting length controlled by sensor switch
△ With secondary stop gauge system, so no stop machine when packing
△ Finished wire vibration alignment function

Model TQ1.6-6 TQ2-8 TQ3-12
Wire diameter Φ1.6-Φ6 [mm] Φ2-Φ8 [mm] Φ3-Φ12 [mm]
Cutting length 50-6000 [mm]Sensor switch, servo cutting 50-6000 [mm]Sensor switch, servo cutting 50-12000 [mm]Sensor switch, servo cutting
Accuracy of length ±1 [mm] ±1 [mm] ±1 [mm]
Straitening shaft speed 500-10000 [rows/min.] (AC frequency control) 500-10000 [rows/min.] (AC frequency control) 500-10000 [rows/min.] (AC frequency control)
Straitening speed 0-180 [m/min.] (AC frequency control) 0-180 [m/min.] (AC frequency control) 0-180 [m/min.] (AC frequency control)
Cutting speed 600 [times/min.] 600 [times/min.] 600 [times/min.]
Power supply 380V  50Hz  13KVA  380V  50Hz  20KVA  380V  50Hz  35KVA
Total power consumption 13 [kw/h] 20 [kw/h] 35 [kw/h]
Electric power consumption 3-7 [kw/h] 8-20 [kw/h] 10-35 [kw/h]
Material Lowmiddle & high carbon steel wireGalvanized steel wireSS wireAlloy steel wire
Steel wire tensile strength 350-1200 [N/mm⊃2;]
Steel wire surface Plain smoothGalvanizedribbed wire etc.

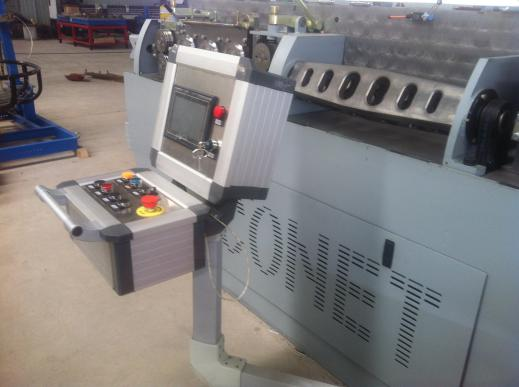

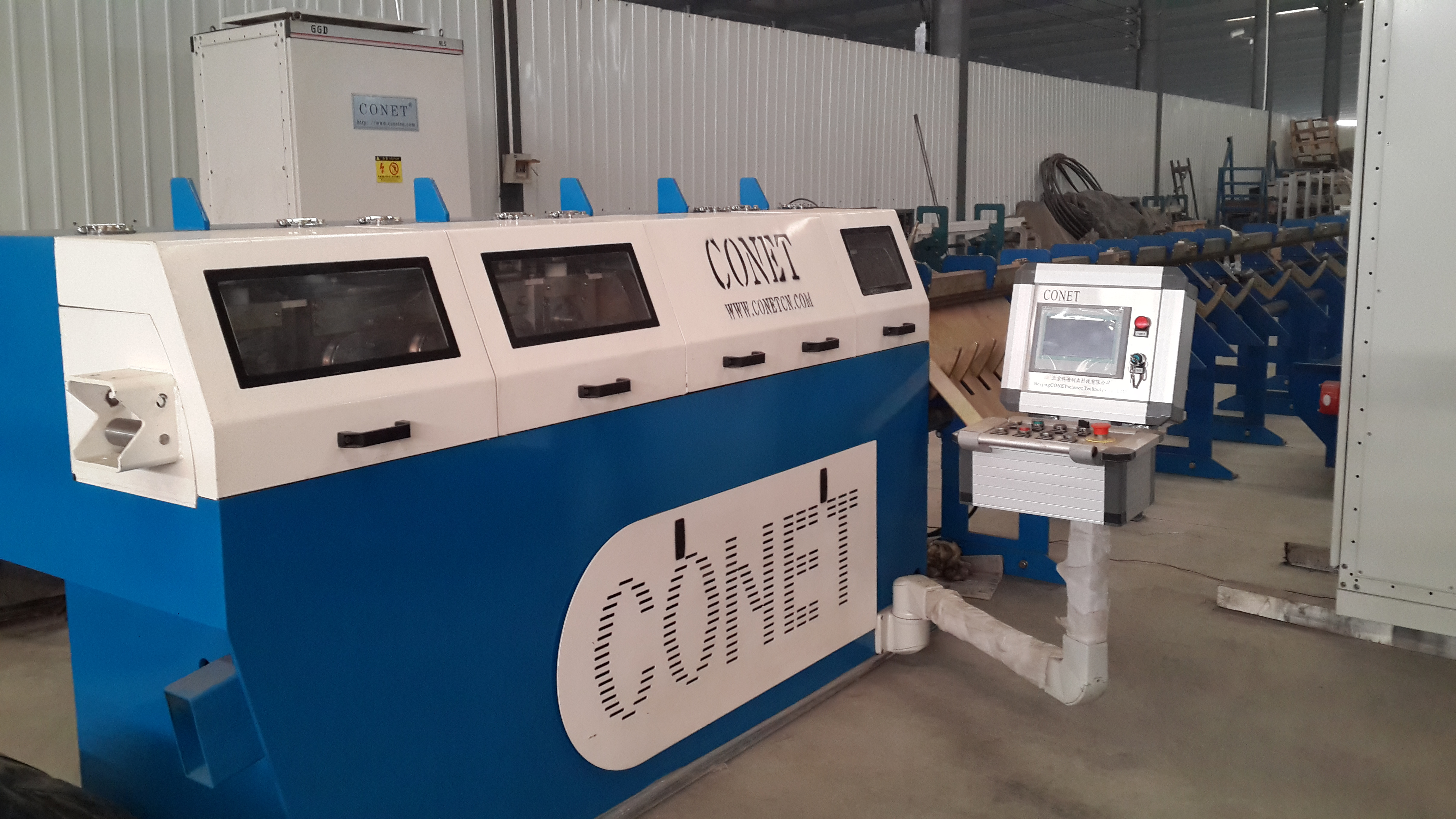

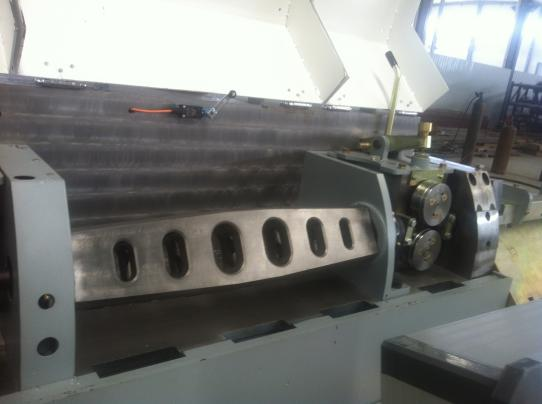

调直系统 可移动控制台 CONET钢筋调直切断机
